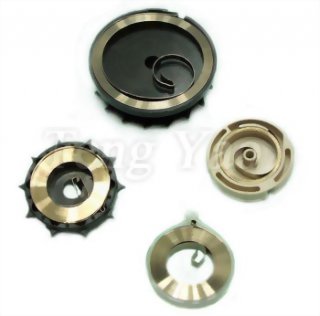

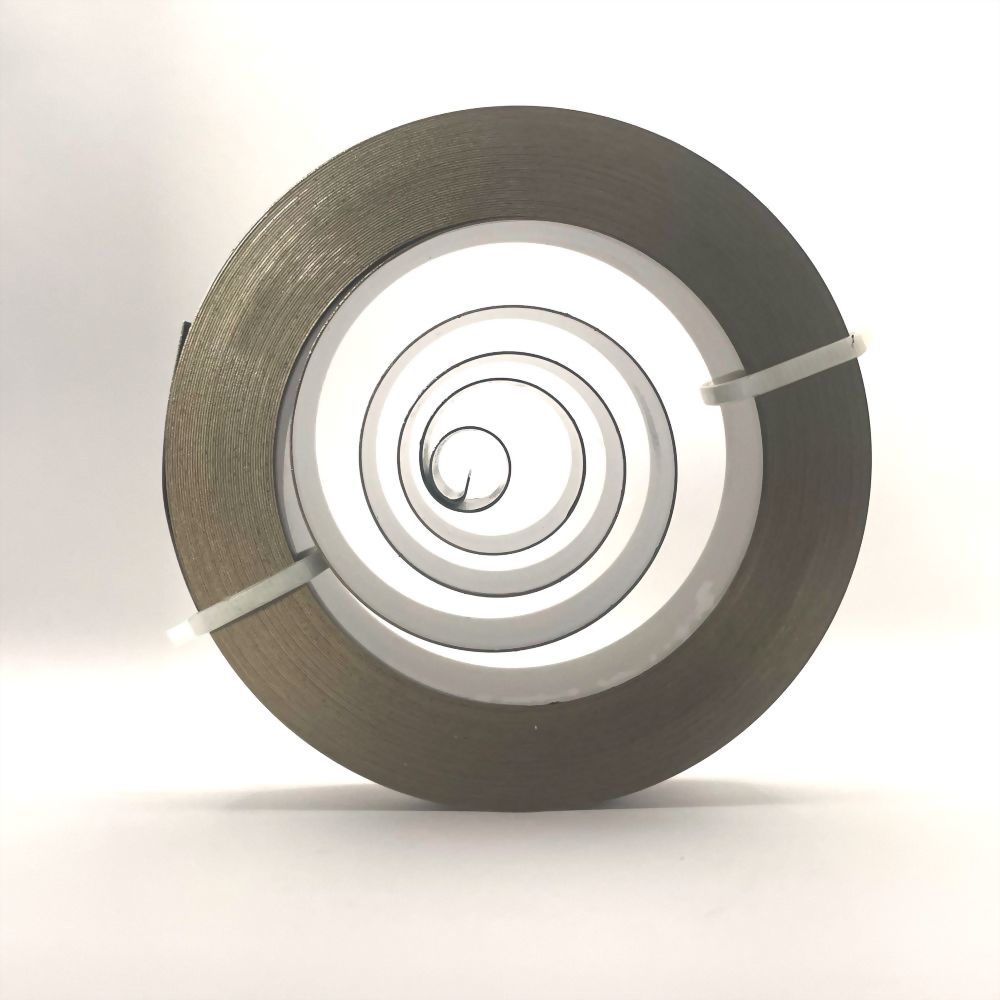

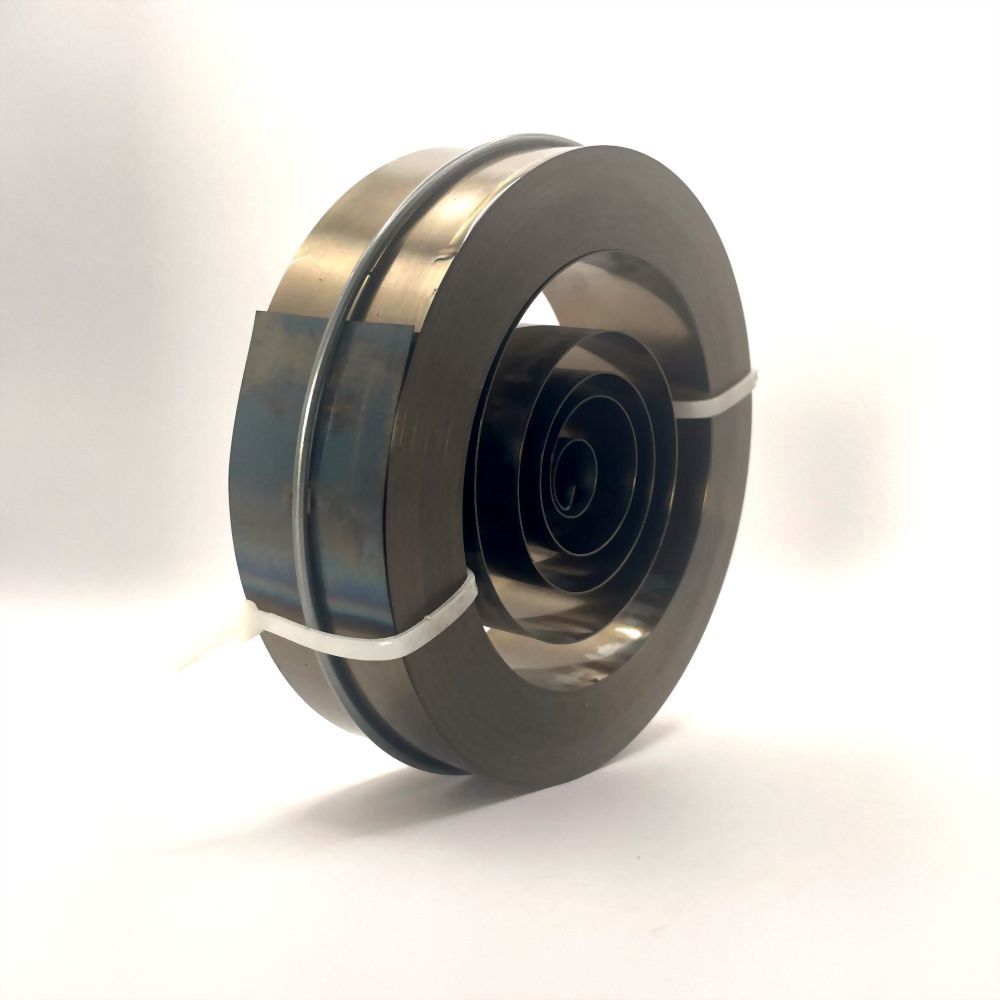

Prestressed Power Spring PPS-008

Model : PPS-008

  • Material : Type 301 stainless steel is typically used for most applications. High-carbon steel and other materials may be required.
  • A wide variety of materials are available for use depending on your application.
  • Thickness : 0.04 - 1.0mm
  • Width : 2.5 - 90mm


[Prestressed Power Spring] / [Customized Prestressed Power Spring]

Prestressed Power springs are made of rectangular section material, are wound flat, and have either special retaining holes or bends on both ends.  As the length-to-thickness ratio (L/t) increases, the spiral space between coils increases rapidly.  To reduce the space required and maintain a reasonable amount of deflection (turns), prestressed power springs are retained in some type of housing or case in application.

Feature of Spring

[Prestressed Power Spring]


1. Material

2. T=Material thickness

3. W=Width

4. Da=Shaft diameter

5. Di=Inside diameter of holder

    (Outside diameter of spring)

[Prestressed Power Spring]

However, prestressed powers can store 25%~55% greater energy than power springs. It also has higher turns than power spring when their sizes are the same.
Power Diagram
[Prestressed Power Spring]
