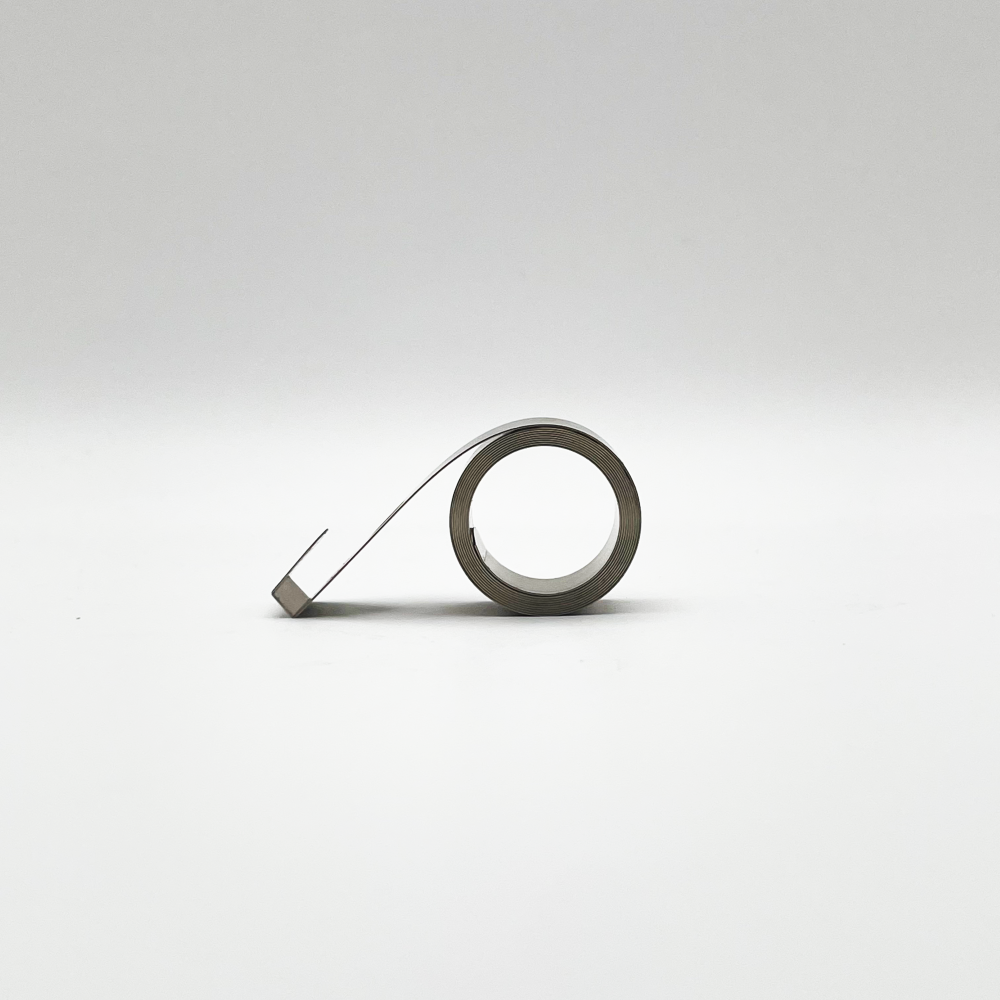

Constant Force Spring CFS-003
Specification Overview
Materials：Including SUS301 and precision steel strips, with customization available to suit your application.
Thickness : 0.04 - 1.0mm
Width : 2.5 - 90mm
Features:Constant force、Safety design、Wide range of applications
Applications:Suitable for products that operate in a linear motion. The force remains consistent during the extension process, and also remains consistent during the retraction process. Overall, the extension force is slightly greater than the retraction force, by approximately 10–20%.
…etc
Materials：Including SUS301 and precision steel strips, with customization available to suit your application.
Thickness : 0.04 - 1.0mm
Width : 2.5 - 90mm
Features:Constant force、Safety design、Wide range of applications
Applications:Suitable for products that operate in a linear motion. The force remains consistent during the extension process, and also remains consistent during the retraction process. Overall, the extension force is slightly greater than the retraction force, by approximately 10–20%.
…etc
Model :
CFS-003
Feature of Spring
[Constant Force Spring application].jpg "constant force springs")
1.Material
2.T=Material thickness
3.W=Width
4.Total length
5.I.D=Inside diameter
6.O.D=Outside diameter
7.In/Ext=Initial extension
8.Wo/Ext=working extension
9.A=End configuration centerline hole to end
10.B=End configuration hole diameter
11.Load
Application
[Constant Force Spring]
.jpg)
.jpg)
Power Diagram
[Constant Force Spring]
Torque Graph
Application：https://www.youtube.com/shorts/HnH3vqvjgiw
