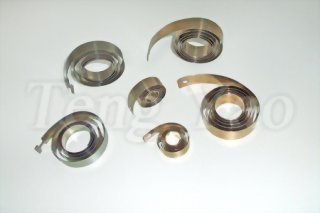

Variable Force Spring PS-030

• Material : Type 301 stainless steel is typically used for most applications. High-carbon steel and other materials may be required.
• A wide variety of materials are available for use depending on your application.
• Thickness : 0.04 - 1.0mm
• Width : 2.5 - 90mm

Introduction
[Variable Force Spring] / [Customized Variable Force Spring]

Variable Force Springs are formed from constant force spring and power spring.

The features of Variable Force Spring can be increased or decreased with the turn of a knob. It can be used on the display or specific occasion.

It also alleviates inventory concerns by eliminating the need to stock several different spring types. It’s a simple, powerful way to provide the right strength and sensitivity to any display application.

Feature of Spring
[Variable Force Spring]

1. Material

2. T=material thickness

3. W=Width

4. I.D=Inside diameter

5. O.D=Outside diameter

6. A=End configuration centerline hole to end

7. B=End configuration hole diameter

8. Working extension

Application
[Variable Force Spring]

Power Diagram
[Variable Force Spring]
